MIG Welding Systems - MG130i

MG130i The model 130 is the easiest to use, most compact, most powerful and BEST VALUE portable MIG welder on the market today! It’s completely versatile with infinitely adjustable wire speed and output power for both gas (MIG) and no-gas (Flux-cored) welding. Given the powerful and efficient inverter power supply, it easily welds 3/16” steel in a single pass on a standard 115-volt outlet. Superior quality CSA Listed inverter with 2-year warranty.

Compare to Lincoln Handy-Mig: 40% Greater Power at ½ the weight!!

System features IGBT inverter power supply with epoxy sealed components in a compact toolbox grade steel air-cooled cabinet with the highest duty-cycle rating in class. Operating features include infinitely variable wire speed and output power from 30-130 amps, LED status indicators, electronic over-temp sensor with auto reset, 4” & 8” spool holder, Gas & No-Gas capabilities, adjustable gas regulator and extended UV/IR welding cables on torch and ground clamp for any application.

Package includes, compact, high efficiency 130A inverter power supply with 115VAC power cord, NM14 MIG gun & 200A work clamp with UV/IR welding cables, dual-gauge gas regulator with brass hose fittings, mild steel & flux-cored welding wire and operator manual with listing of consumable & maintenance parts.

Input Power: 115VAC 50/60 Hz
Input Current: 20 Amps
Wire Sizes: .024”, .030”, .035” on 4” or 8” spool
Dimensions: 17.50” x 7.50” x 12.60” (443x191x320)

Output Voltage: 18 – 24VDC
Output Current: 30-130 Amps
Duty-Cycle: 20% @ 130A / 100% @ 70A
Weight: 20 Lbs. (7.0 Kg)

Shipping carton: 23.75” x 13.25” X 15”

Shipping weight: 32 Lbs.

MIG Welding Systems - MG140i

MG140i The model 140 is the most powerful 115-volt portable MIG welder on the market today with 140 Amps of output power @ 35% duty-cycle! It’s completely versatile with infinitely adjustable wire speed and output power for both gas (MIG) and no-gas (Flux-cored) welding. Superior quality CSA Listed inverter with 2-year warranty.

System features IGBT inverter power supply with epoxy sealed components in a compact toolbox grade steel air-cooled cabinet with the highest duty-cycle rating in class. Operating features include infinitely variable wire speed and output power from 35-140 amps, LED status indicators, electronic over-temp sensor with auto reset, 4” & 8” spool holder, Gas & No-Gas capabilities, adjustable gas regulator and extended UV/IR welding cables on torch and ground clamp for any application.

Package includes power supply with 115VAC power cord, SL15 MIG gun & 200A work clamp with UV/IR welding cables, dual-gauge gas regulator with brass hose fittings, mild steel welding wire and operator manual with listing of consumable & maintenance parts.

Input Power: 115VAC 50/60 Hz
Input Current: 20 Amps (min.)
Wire Sizes: .024”, .030”, .035” on 4” or 8” spool
Dimensions: 18.30” x 8.42” x 15.50” (465x214x395)

Output Voltage: 18 – 24VDC
Output Current: 35-140 Amps
Duty-Cycle: 140 Amps @ 35%
Weight: 24 Lbs. (7.0 Kg)

Shipping carton: 22.50” x 15.00” x 20.50” (570 X 380 X 520)

Shipping weight: 32 Lbs.

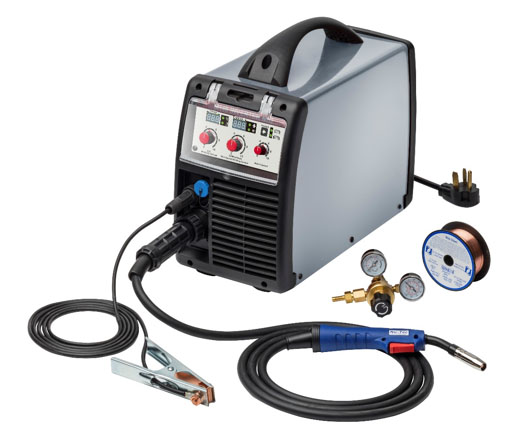

MIG Welding Systems - MG200i

MG200i The model 200 is the most powerful 230-volt portable MIG welder on the market today with 200 Amps of output power @ 35% duty-cycle! It’s completely versatile with infinitely adjustable wire speed and output power for both gas (MIG) and no-gas (Flux-cored) welding. Superior quality CSA Listed inverter with 2-year warranty.

System features IGBT inverter power supply with epoxy sealed components in a compact toolbox grade steel air-cooled cabinet with the highest duty-cycle rating in class. Operating features include infinitely variable wire speed and output power from 35-200 amps, LED status indicators, electronic over-temp sensor with auto reset, 4” & 8” spool holder, Gas & No-Gas capabilities, adjustable gas regulator and extended UV/IR welding cables on torch and ground clamp for any application.

Package includes power supply with NEMA5-60P power cord, SL15 MIG gun & 200A work clamp with UV/IR welding cables, dual-gauge gas regulator with brass hose fittings, .030” mild steel welding wire and operator manual with listing of consumable & maintenance parts.

Input Power: 208-240VAC 50/60 Hz
Input Current: 20 Amps (min.)
Wire Sizes: .024”, .030”, .035” on 4” or 8” spool
Dimensions: 18.30” x 8.42” x 15.50” (465x214x395)

Output Voltage: 18 – 24VDC
Output Current: 30-200 Amps
Duty-Cycle: 200 Amps @ 35%
Weight: 24 Lbs. (7.0 Kg)

Shipping carton: 22.50” x 15.00” x 20.50” (570 X 380 X 520)

Shipping weight: 32 Lbs.

MIG Welding Systems - MG200S

MG200S MG200S Synergic MultiMig

The model MG200S LCD is the ONLY multifunctional MIG, TIG & MMA welding unit with LCD selectable Synergic MIG welding programs for steel, aluminum & silicone bronze alloys from #20GA to 7/16”. It’s completely versatile with 110-240 volt input producing up to 200 amps of infinitely adjustable output power for controlled welds on thin-walled tube and panels to standard steel plate.

System features IGBT inverter power supply with epoxy sealed components and 0.99 efficiency PFC dual voltage circuit in a compact air-cooled cabinet with the highest duty-cycle rating in class. Operating features include digital control panel with LCD display, Synergic MIG programs, manual infinitely variable wire speed & output power from 5-200 amps. In the DC TIG mode, lift-arc start, pre & post shield gas settings and foot pedal control make quick work for welding on mild, stainless and/or chrome moly materials (no aluminum TIG).

Package includes synergic inverter power supply with dual voltage, NM15 MIG gun, SR17 TIG torch with quick-connect welding cable 12.5’, 200A work clamp with quick-connect welding cable 10’, 200-amp electrode holder with quick-connect welding cable 10’, foot pedal control with trim potentiometer & 16’ direct-connect cable, 115-volt jump-power cord, dual-gauge gas regulator, AK-2 torch kit and operator manual. Optional SG200 aluminum spool gun may be added to the system at any time (built-in controls) for synergic welding on all aluminum alloys.

Input Power: 110-240VAC Single-P 50/60 Hz
Output Power: 5-200 Amps (DCV)
Input Current: 37 amps (Max. @ 208VAC)
Duty-Cycle: 35% @ 200 Amps
Dimensions: 21.62” x 8.43” x 15.56” (550x214x395)
Unit Weight: 31 Lbs. (15 Kg)
Shipping carton: 29.75” x 14.75” X 21.75”
Shipping weight: 64 Lbs.

MIG Welding Systems - M250DP

M250DP The M250 Synergic Pulse Multi-purpose MIG/TIG/STICK welder is the choice of automotive repair professionals with unparalleled performance. This compact machine offers four MIG welding modes: manual, synergic, synergic single-pulse, synergic double-pulse programs and three wire feed torch drives for steel, aluminum and silicone bronze welding with wire sizes from .023”-.045”. The unit also features lift-arc DC TIG and stick electrode welding capability. With 250 amps of power, it is capable of welding all steel and aluminum alloys from #20GA to ½”. Additionally, it offers twin cylinder racks and dual gas inputs for mixed and 100% gases.

System features IGBT high efficiency inverter power supply with epoxy sealed components in a compact air-cooled cabinet with the highest duty-cycle rating in class. Operating features include digital control panel with LED displays, infinitely variable output power from 10-250 amps and operator selectable pre & post gas, slow feed, burn back, spot, ramp, slope, frequency, duty, arc length, spool gun, hot start, and arc force.

Package includes high efficiency inverter power supply with three dedicated MIG guns (Steel, Aluminum & Silicone Bronze), compact TIG torch with thumb-wheel control & quick-connect welding cable 12.5’, 250A electrode holder with quick-connect welding cable 10’, 250A ground clamp with quick-connect welding cable 10’, dual gas regulators, AK-2 torch kit, spools of steel, aluminum and silicone bronze wire, “V” & “U” drive rolls & contact tips and complete operator manual with all programs.

Input Power: 208-240VAC Single-P 50/60 Hz
Output Power: 30-250 Amps (DCV)
Input Current: 35 Amps (NEMA 6-50P Cord)
Duty-Cycle: 30% @ 250 Amps
Dimensions: 41” x 12.62” x 36.5” (105 X 32 X 93)
Weight: 172 Lbs. (78 Kg)

Inner carton: 33.5” X 24.8” X 34.25” (85 X 63 X 87)
Shipping Weight: ~220 Lbs.

MIG Welding Systems - MG260D

MG260D This professional shop system produces a full 250 Amps of welding power for an extended 25% duty-cycle on standard 230-volt outlet and is capable of welding mild steels from #18GA to 1/2" with .023"-.045" diameter wire. Control package includes 14-step power settings, dual chokes, adjustable stitch and spot and Gun-to-Spoolgun switch to insure precision welds from the lightest gauge aluminum to the heaviest gauge steels. Package includes machine with a Euro-connect SL25 Industrial Duty MIG gun with 10' cable assembly, 300 Amp work clamp and cable, brass gas regulator and hose, mild-steel welding wire and complete operator instruction manual.
