Nu-Tec Systems











Nu-Tec® professional grade TIG torches. Nutecsys and Nu-tecsys TIG Torches.


Series 9

125 AMP Lightweight Air-Cooled TIG Torch
Electrode Range: .020" - 3/32" (0.5mm - 2.4mm)
SR-9 Silicon Rubber w/ 70 degree Neck

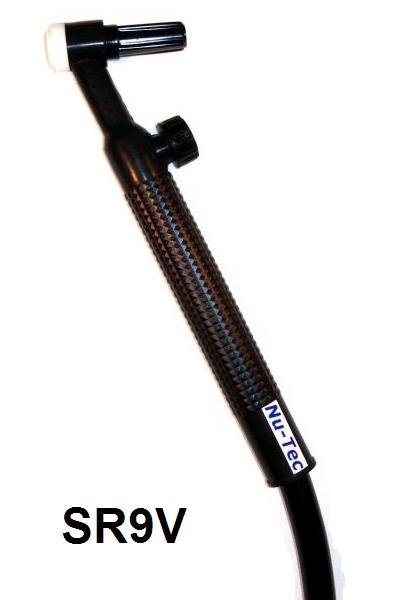

SR-9V Silicon Rubber w/ 70 degree Neck and Valve
SR-9F Silicon Rubber w/ Flexible Neck
SR-9FV Silicon Rubber w/ Flexible Neck and Valve
SR-9P Silicon Rubber w/ Pencil (straight) Neck
HP-9 Hard Plastic w/ 70 degree Neck and Ribbed Handle


Series 12




500 AMP Heavy-Duty Water-Cooled TIG Torch
Electrode Range: 1/16" - 1/4" (1.6mm - 6.4mm)
SR-12 Silicon Rubber w/ 70 degree Neck


Series 17

150 AMP Lightweight Air-Cooled TIG Torch
Electrode Range: .020" - 3/32" (0.5mm - 2.4mm)
SR-17 Silicon Rubber w/ 70 degree Neck

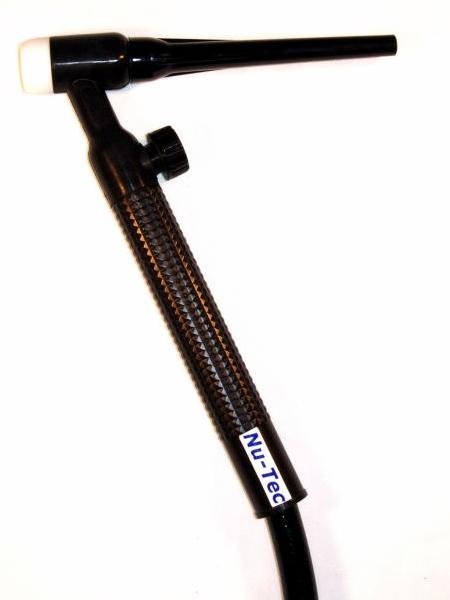

SR-17V Silicon Rubber w/ 70 degree Neck and Valve
SR-17FV Silicon Rubber w/ Flexible Neck and Valve


Series 18

350 AMP Heavy-Duty Water-Cooled TIG Torch
Electrode Range: .020" - 5/32" (0.5mm - 4.0mm)

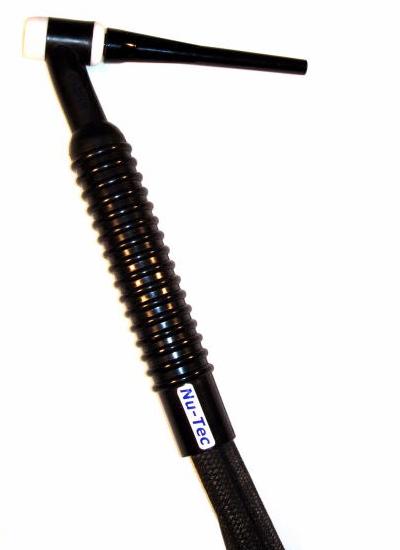

SR-18 Silicon Rubber w/ 70 degree or 90 degree Neck
SR-18V Silicon Rubber w/ 70 degree or 90 degree Neck and Valve
SR-18P Silicon Rubber w/ Pencil (straight) Neck

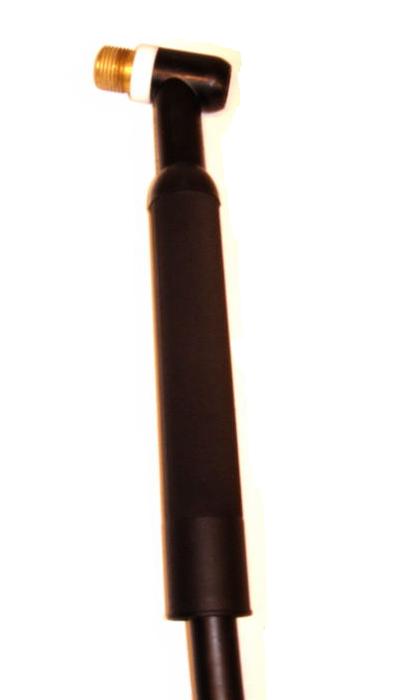

SR-18SC Silicon Rubber w/ 70 degree or 90 degree Neck (500A w/ connectors)


Series 20

250 AMP Lightweight Water-Cooled TIG Torch
Electrode Range: .020" - 1/8" (0.5mm - 3.2mm)
SR-20 Silicon Rubber w/ 70 degree Neck
SR-20P Silicon Rubber w/ Pencil (straight) Neck
SR-20F Silicon Rubber w/ Flexible Neck
SR-20FHD Silicon Rubber w/ Flexible Neck HD (350 AMP)


Series 22




250 AMP MD-Barrel Water-Cooled TIG Torch
Electrode Range: .020" - 1/8" (0.5mm - 3.2mm)
SR-22A 3/4" Barrel Medium-Duty w/ 180 degree length
SR-22B 3/4" Barrel Medium-Duty w/ 180 degree length


Series 24

80-180 AMP Lightweight Air or Water-Cooled TIG Torch
Electrode Range: .020" - 3/32" (0.5mm - 2.4mm)
SR-24 Silicon Rubber w/ 60 degree or 90 degree Neck, Air-Cooled (80A)
SR-24W Silicon Rubber w/ 60 degree or 90 degree Neck, Water-Cooled (180A)


Series 26

200 AMP Heavy-Duty Air-Cooled TIG Torch
Electrode Range: .020" - 5/32" (0.5mm - 2.4mm)

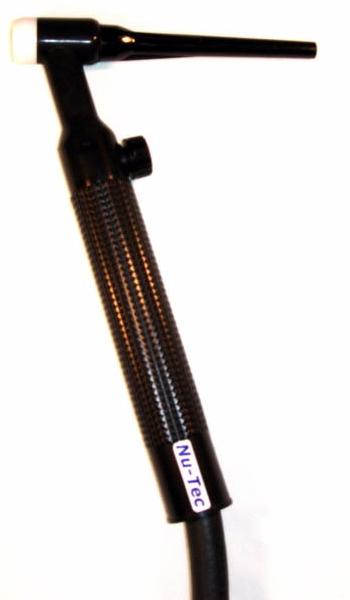

SR-26 Silicon Rubber w/ 70 degree Neck
SR-26V Silicon Rubber w/ 70 degree Neck and Valve
SR-26FV Silicon Rubber w/ Flexible Neck and Valve


Series 27




500 AMP HD-Barrel Water-Cooled TIG Torch
Electrode Range: .040" - 1/4" (1.0mm - 6.4mm)
SR-27A 1 3/8" Barrel Heavy-Duty w/ 180 degree length
SR-27B 1 3/8" Barrel Heavy-Duty w/ 180 degree length


Automatic - Water Cooled TIG Torch

AUT390/400S
350 - 600 AMPs
Electrode Range: (1.0mm - 8.0mm)


Consumables




Nu-Tec Systems® offers a full array of all TIG consumables including gas lenses, ceramic nozzles, Lava cups, handles & switches, gas & air hoses, power cables and quick-plug sockets.
