Nu-Tec Systems











NuTec Mig and Tig Welding Products By Nutecsys.


MIG & TIG Welding Systems

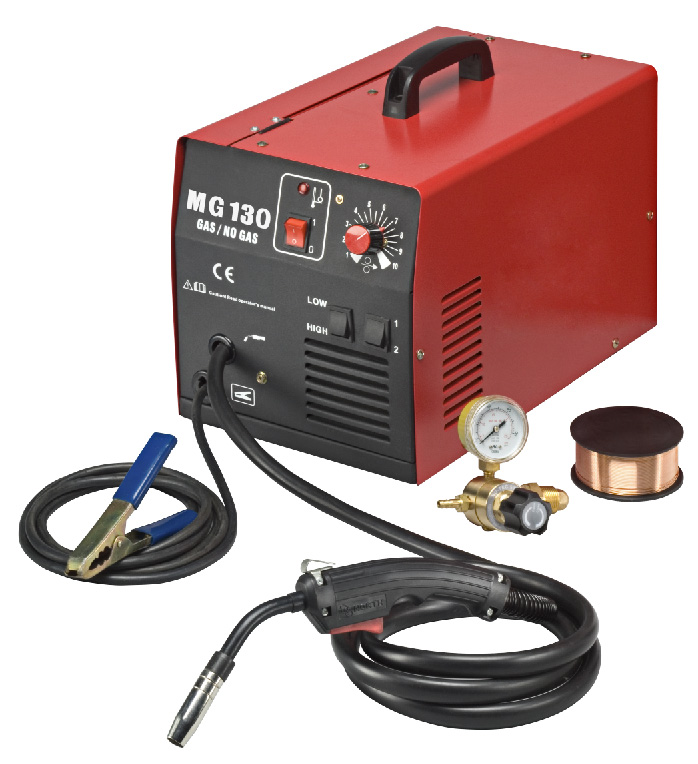

MG130i

The model 130 is the easiest to use, most compact, most powerful and BEST VALUE portable MIG welder on the market today! It’s completely versatile with infinitely adjustable wire speed and output power for both gas (MIG) and no-gas (Flux-cored) welding. Given the powerful and efficient inverter power supply, it easily welds 3/16” steel in a single pass on a standard 115-volt outlet. Superior quality CSA Listed inverter with 2-year warranty.

Compare to Lincoln Handy-Mig: 40% Greater Power at ฝ the weight!!

System features IGBT inverter power supply with epoxy sealed components in a compact toolbox grade steel air-cooled cabinet with the highest duty-cycle rating in class. Operating features include infinitely variable wire speed and output power from 30-130 amps, LED status indicators, electronic over-temp sensor with auto reset, 4” & 8” spool holder, Gas & No-Gas capabilities, adjustable gas regulator and extended UV/IR welding cables on torch and ground clamp for any application.

Package includes, compact, high efficiency 130A inverter power supply with 115VAC power cord, NM14 MIG gun & 200A work clamp with UV/IR welding cables, dual-gauge gas regulator with brass hose fittings, mild steel & flux-cored welding wire and operator manual with listing of consumable & maintenance parts.


Input Power:      115VAC 50/60 Hz
Input Current:    20 Amps
Wire Sizes:        .024”, .030”, .035” on 4” or 8” spool
Dimensions:      17.50” x 7.50” x 12.60” (443x191x320)

Output Voltage: 18 – 24VDC
Output Current: 30-130 Amps
Duty-Cycle:       20% @ 130A  /  100% @ 70A
Weight:             20 Lbs. (7.0 Kg)

Shipping carton: 23.75” x 13.25” X 15”

Shipping weight: 32 Lbs.



MG140i

The model 140 is the most powerful 115-volt portable MIG welder on the market today with 140 Amps of output power @ 35% duty-cycle! It’s completely versatile with infinitely adjustable wire speed and output power for both gas (MIG) and no-gas (Flux-cored) welding. Superior quality CSA Listed inverter with 2-year warranty.

System features IGBT inverter power supply with epoxy sealed components in a compact toolbox grade steel air-cooled cabinet with the highest duty-cycle rating in class. Operating features include infinitely variable wire speed and output power from 35-140 amps, LED status indicators, electronic over-temp sensor with auto reset, 4” & 8” spool holder, Gas & No-Gas capabilities, adjustable gas regulator and extended UV/IR welding cables on torch and ground clamp for any application.

Package includes power supply with 115VAC power cord, SL15 MIG gun & 200A work clamp with UV/IR welding cables, dual-gauge gas regulator with brass hose fittings, mild steel welding wire and operator manual with listing of consumable & maintenance parts.

Input Power:      115VAC 50/60 Hz
Input Current:    20 Amps (min.)
Wire Sizes:        .024”, .030”, .035” on 4” or 8” spool
Dimensions:      18.30” x 8.42” x 15.50” (465x214x395)

Output Voltage: 18 – 24VDC
Output Current: 35-140 Amps
Duty-Cycle:       140 Amps @ 35%
Weight:             24 Lbs. (7.0 Kg)

Shipping carton: 22.50” x 15.00” x 20.50” (570 X 380 X 520)

Shipping weight: 32 Lbs.


MG200i

The model 200 is the most powerful 230-volt portable MIG welder on the market today with 200 Amps of output power @ 35% duty-cycle! It’s completely versatile with infinitely adjustable wire speed and output power for both gas (MIG) and no-gas (Flux-cored) welding. Superior quality CSA Listed inverter with 2-year warranty.

System features IGBT inverter power supply with epoxy sealed components in a compact toolbox grade steel air-cooled cabinet with the highest duty-cycle rating in class. Operating features include infinitely variable wire speed and output power from 35-200 amps, LED status indicators, electronic over-temp sensor with auto reset, 4” & 8” spool holder, Gas & No-Gas capabilities, adjustable gas regulator and extended UV/IR welding cables on torch and ground clamp for any application.

Package includes power supply with NEMA5-60P power cord, SL15 MIG gun & 200A work clamp with UV/IR welding cables, dual-gauge gas regulator with brass hose fittings, .030” mild steel welding wire and operator manual with listing of consumable & maintenance parts.

Input Power:         208-240VAC 50/60 Hz
Input Current:       20 Amps (min.)
Wire Sizes:            .024”, .030”, .035” on 4” or 8” spool
Dimensions:         18.30” x 8.42” x 15.50” (465x214x395)

Output Voltage: 18 – 24VDC
Output Current: 30-200 Amps
Duty-Cycle:          200 Amps @ 35%
Weight:                  24 Lbs. (7.0 Kg)

Shipping carton: 22.50” x 15.00” x 20.50” (570 X 380 X 520)

Shipping weight: 32 Lbs.


MM200i

The MM200 Multi-purpose MIG/TIG/STICK welder is the choice of professionals, with 200 amps of DC power it is capable of welding all steel alloys from #20GA to 3/8” and is completely versatile with dual 110 & 230 volt input power cords. Inverter power offers infinitely adjustable (i.e. no steps) output power for controlled welds on thin-walled tube to plate materials including mild carbon, chrome moly and stainless steel.

System features IGBT inverter power supply with epoxy sealed components and 0.99 efficiency PFC dual voltage circuit in a compact air-cooled cabinet with the highest duty-cycle rating in class. Only multi-purpose machine on the market today that allows the User to keep MIG gun and TIG torch connected to machine and "switch-on-the-fly" between MIG & TIG welding. Operating features include digital control panel with LED displays, infinitely variable output power from 10-200 amps, lift-arc or HF start, pre and post shield gas settings, auto over-temp & over-voltage protection and adjustable foot pedal control.

Package includes pulsed inverter power supply with dual voltage, NM15 MIG gun, SR17 TIG torch with quick-connect welding cable 12.5’, 200A work clamp with quick-connect welding cable 10’, 200-amp electrode holder with quick-connect welding cable 10’, foot pedal control with trim potentiometer & 16’ direct-connect cable, 115-volt jump-power cord, dual-gauge gas regulator, AK-2 torch kit and operator manual.

Input Power:    110-240VAC Single-P 50/60 Hz

Input Current:  35 amps (Max. @ 208VAC)

Dimensions:    21.62” x 8.43” x 15.56” (550x214x395)

Output Power:   5-200 Amps (DCV)

Duty-Cycle:       35% @ 200 Amps

Weight:             31 Lbs. (15 Kg)

Shipping carton: 29.75” x 14.75” X 21.75”

Tungsten electrode: 1/16” (max.) DC Thoriated

Tungsten electrode: 1/8” (max.) AC Pure or Zirconiated

Shipping weight: 52 Lbs.

Stick electrode:             3/16” (max.)

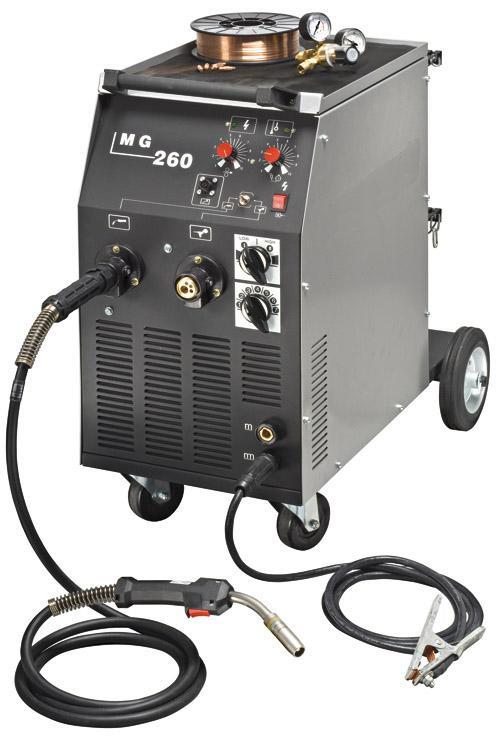

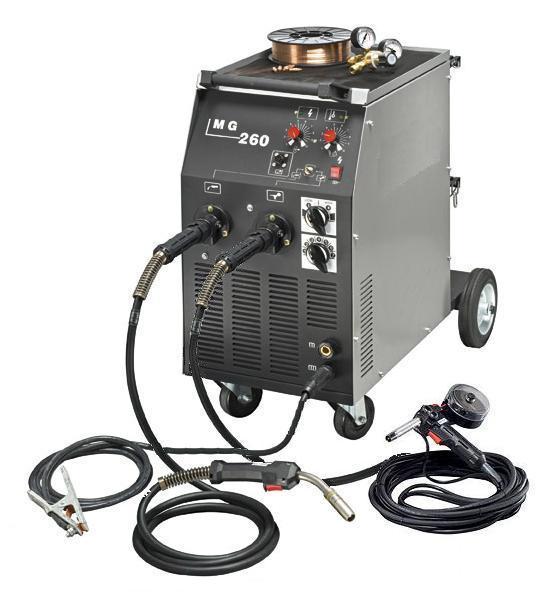

MG260
This professional shop system produces a full 250 Amps of welding power for an extended 25% duty-cycle on standard 230-volt outlet and is capable of welding mild steels from #18GA to 1/2" with .023"-.045" diameter wire. Control package includes 14-step power settings, dual chokes, adjustable stitch and spot and Gun-to-Spoolgun switch to insure precision welds from the lightest gauge aluminum to the heaviest gauge steels. Package includes machine with a Euro-connect SL25 Industrial Duty MIG gun with 10' cable assembly, 300 Amp work clamp and cable, brass gas regulator and hose, mild-steel welding wire and complete operator instruction manual.

  • Nu-Tec MIG- Catalog
  •
